Input AC

AC 220V/110V ±10% / 50Hz

Input power

826 W

Resolution

AD:16bit; DA:16bit

Input impedance

≥1MΩ

Voltage

CV output range

25mV~5V

Min discharge voltage

2V for universal holder,2.5V for 2m cable

Accuracy

± 0.05% FS

Stability

± 0.05% FS

Current

Output range/channel

Range1: 5mA-1A; Range2: 1A-6A; Range3: 6A-12A

Accuracy

± 0.05% FS

CV cut-off current

Range1: 2mA; Range2: 12mA;Range3: 24mA

Stability

± 0.05% FS

Power

Output power/channel

60W

Stability

± 0.1% FS

Time

Current response time

<1ms (10% FS~90% FS)

Working step time

≤(365*24)h/step Timeformat-00:00:00.000(h, m, s, ms)

Data record

Data record conditions

Min data record interval: 100ms

Min voltage change: 10mV

Min current change: 2mA; 12mA; 24mA

Frequency

10Hz

Charge

Charge modes

CC, CV, CCCV, CP

Cut-off condition

Voltage, Current, Time, Capacity, Energy, -△V

Discharge

Discharge modes

CC, CV, CCCV, CP, CR

Cut-off condition

Voltage, Current, Time, Capacity, Energy

Pulse

Charge

CC, CP

Discharge

CC, CP

Min pulse width

500ms

Pulse counts

Up to 32

Chg and Dschg switch

Supported

Cut-off condition

Voltage, Time

DCIR

Calculated DCIR values available in BTSDA

Cycle

Max cycles

65535

Max steps

254

Cycle nest

3

Protection

Safety protection

Power-failure data protection

Offline operation mode

User-defined protection conditions, such as upper and lower current/voltage, delay time, temperature, etc.

Channels feature

Independent pairs of closed loop for constant

Channels control mode

Independent control

Data acquisition method

Kelvin connection

Noise

<85dB

Database

MySQL

Communication

TCP/IP

Operating system

Windows 7/8/10 64bit

Data export

EXCEL, TXT, CSV, PDF, Plot/Graph

Min. disk drive

500GB

Communication port

Ethernet port

Leak Current

<5μA

Channels per unit

8

Operation and storage environment requirement

Operation environment temperature

0℃~40℃ (When the temperature is 25±10℃, the accuracy offset caused by temperature is less than 50ppm/℃)

Storage environment temperature

-10℃~50℃

Operation environment humidity

≤70% RH(no moisture condensation)

Storage environment humidity

≤80% RH(no moisture condensation)

Clamps and dimensions

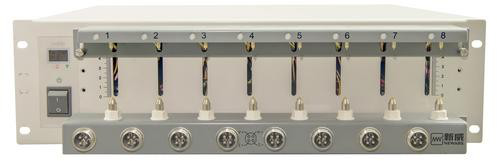

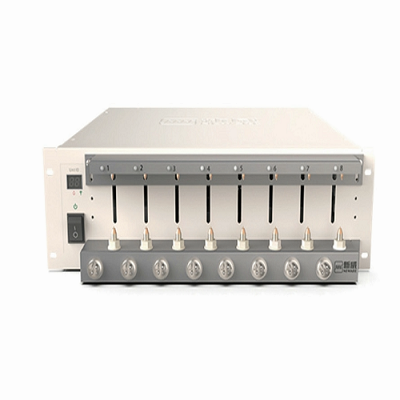

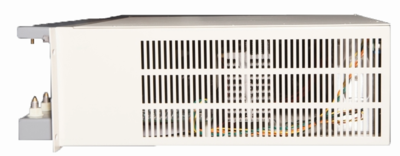

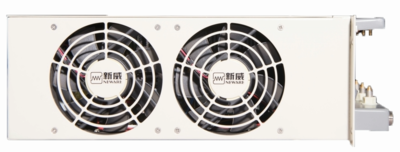

Tester pictures

Clamps pictures

Universal holder

Alligator

Polymer

Ring connector

Pictures just for reference

Dimensions

(W*D*H)(mm)

3U19", 483*563*130(S1) / 483*518*130(204n)

Warranty

One year limited warranty with lifetime support
